PPR Pipe Production Line

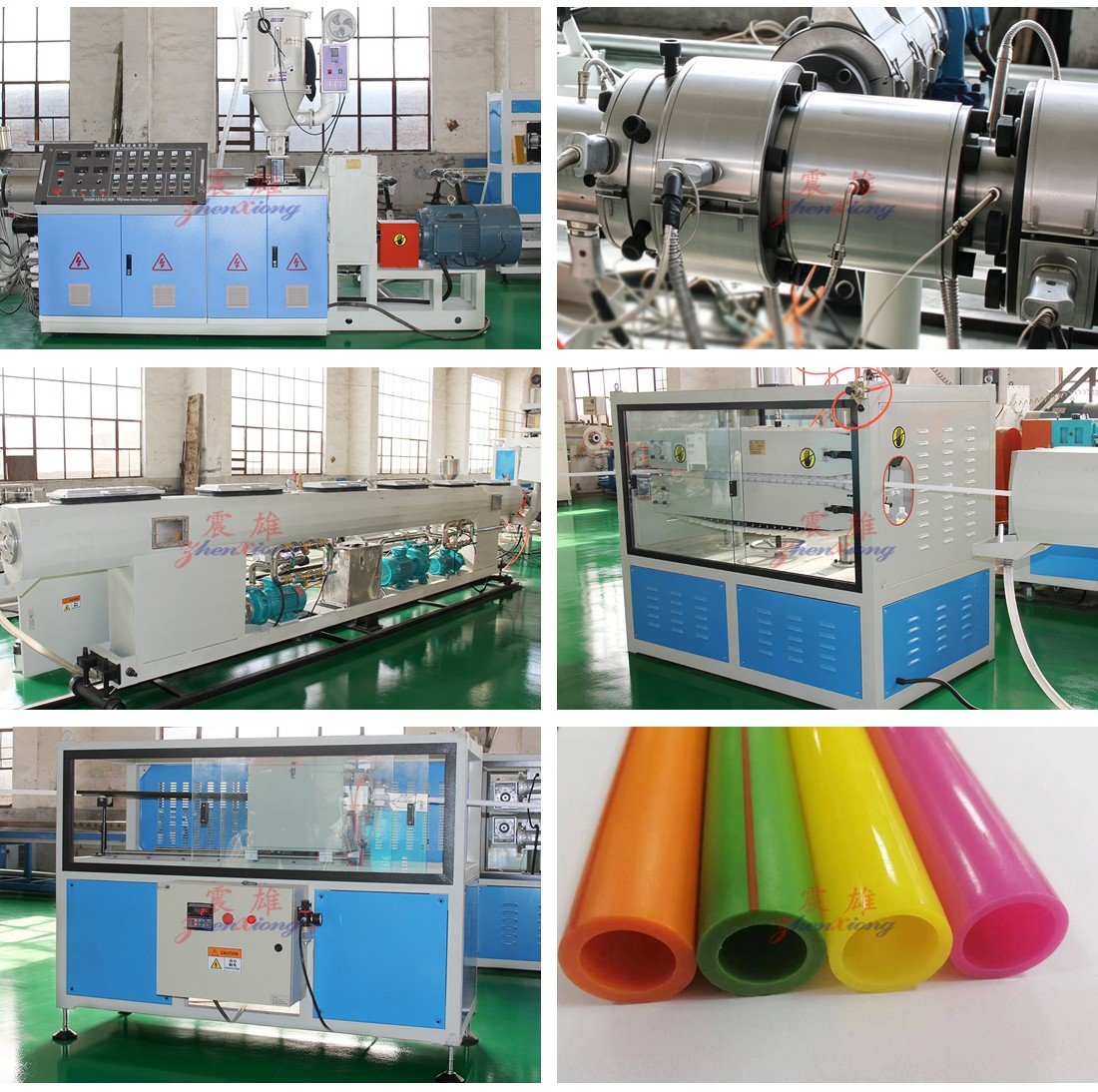

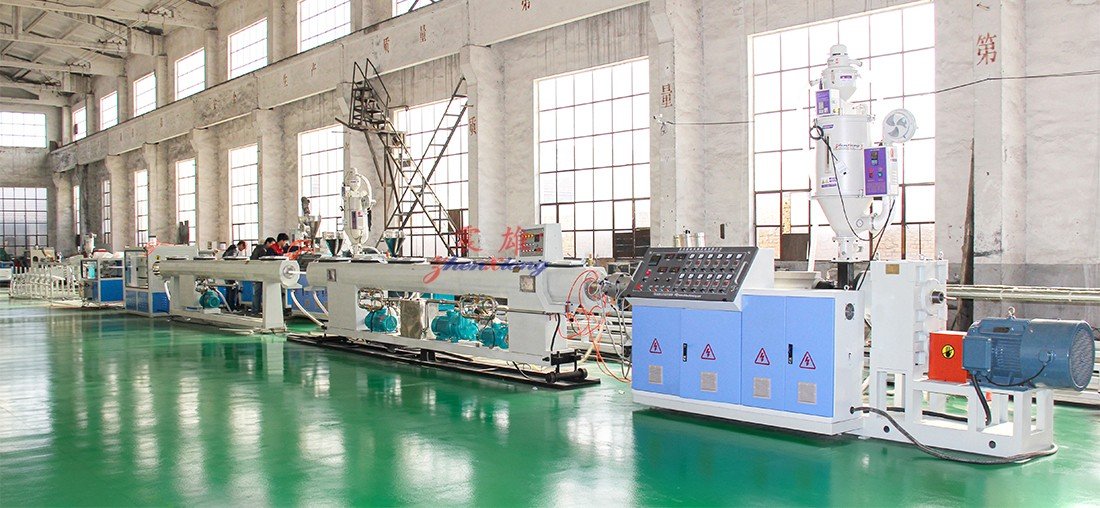

Zhenxiong Machinery's high-speed PPR pipe production line realizes an automated production mode from the feeding end to the pipe collection. The entire production line is controlled by a PLC integrated control system, equipped with an automatic fault alarm system, and is easy to operate.

Core advantages:

●The PPR pipe production line can achieve high-speed and high-output extrusion and good plasticizing effect. The extruder can be equipped with online masterbatch addition to flexibly realize the production of single-layer and multi-layer PPR pipes.

●The PPR pipe production line has a specially designed co-extrusion die head with reasonable flow channels, which can be selected for single-layer or multi-layer structures with uniform wall thickness.

●The water spray heads of the PPR pipe production line are reasonably arranged, the spray angle can be adjusted, the cooling is uniform, the deformation possibility is small, and the shaping is fast.

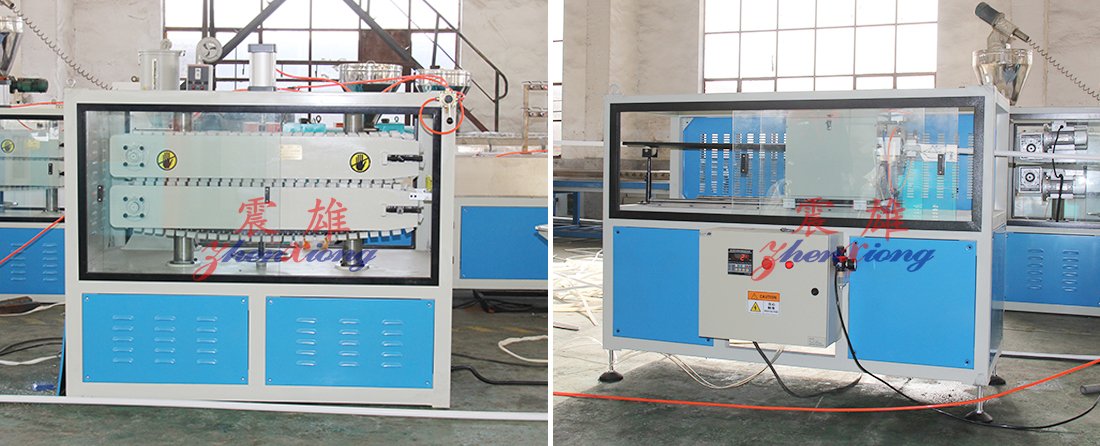

●The PPR pipe production line has a large clamping force and variable frequency speed regulation, ensuring a stable large speed regulation range and stable pulling out of pipes.

●PPR pipe production lines of different specifications can be provided: ordinary or high speed, single layer or multi-layer, single output or double output, etc.

●PPR pipe production lines can be used to produce PPR pipes with a diameter range from (20) mm to (160) mm.

Product application range:

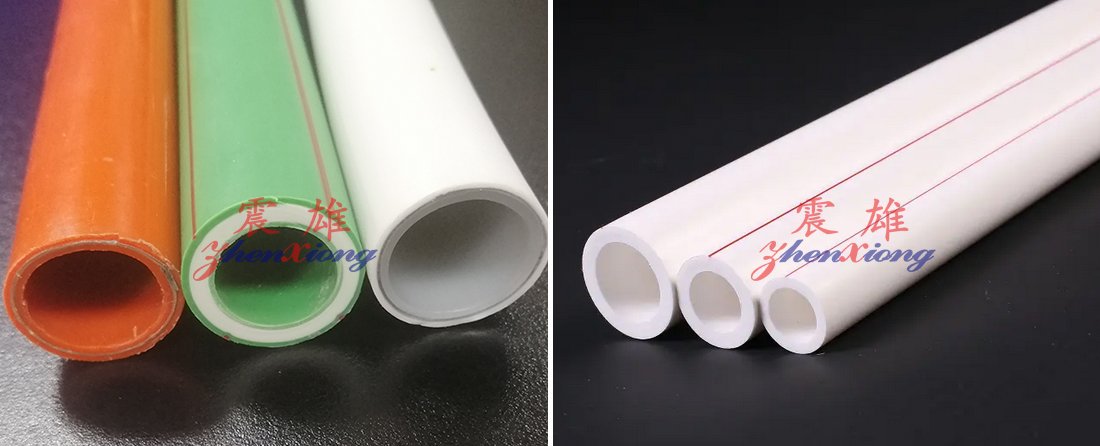

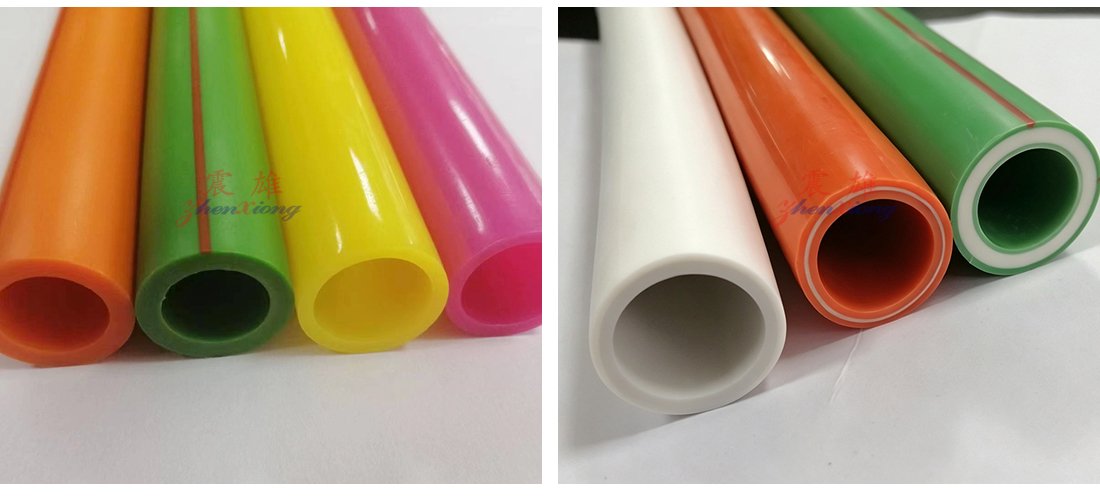

PPR pipes are mainly used as water supply pipes due to their light weight, corrosion resistance, easy installation, stable performance, heat resistance, and hygiene. They are generally used in hot and cold water systems, heating systems, pure water supply systems, central air conditioning systems, and pipeline systems for transporting or discharging chemical substances.
